Simac::ChordExtractor Class Reference

#include <ChordExtractor.hxx>

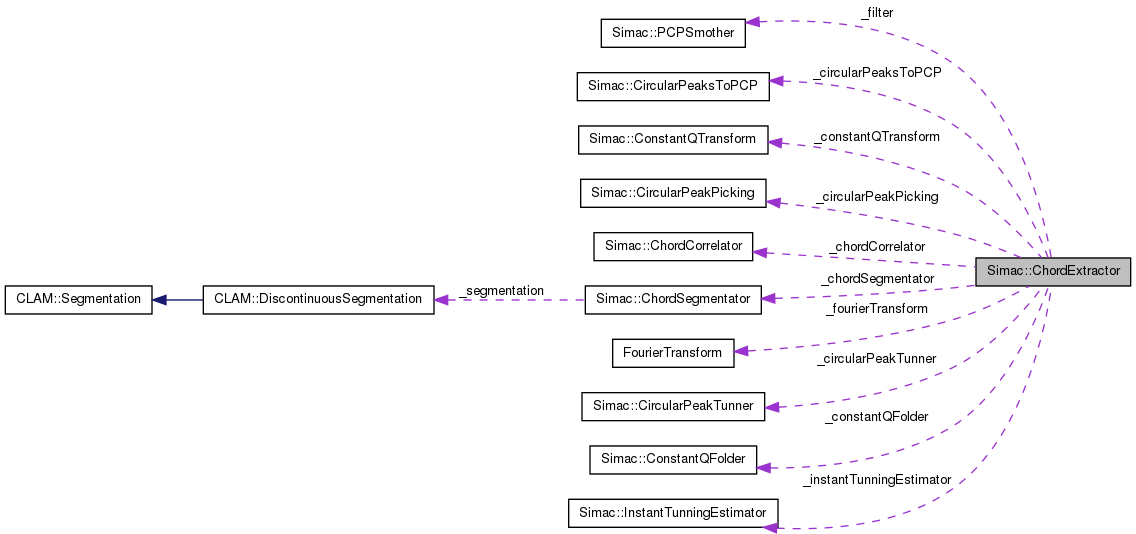

Collaboration diagram for Simac::ChordExtractor:

List of all members.

Public Types
typedef float *	AudioFrame
Public Member Functions
	ChordExtractor (unsigned sampleRate=44100, double minimumFrequency=98, unsigned binsPerOctave=36)
	~ChordExtractor ()
void	filterInertia (double inertia)
void	enableTunning (bool tunningEnabled=true)
void	enablePeakWindowing (bool peakWindowingEnabled=true)
void	hopRatio (double hopRatio)
void	segmentationMethod (double segmentationMethod)
unsigned	hop () const
unsigned	frameSize () const
void	doIt (const AudioFrame &input, CLAM::TData &currentTime)
void	estimateChord (const ChordCorrelator::ChordCorrelation &correlation)
std::string	chordRepresentation (unsigned chordIndex) const
std::string	root (unsigned chordIndex) const
std::string	mode (unsigned chordIndex) const
const std::string	chordEstimation () const
const std::vector< double > &	chromagram () const
const std::vector< double > &	pcp () const
const std::vector< std::pair < double, double > > &	peaks () const
const std::vector< double > &	chordCorrelation () const
const CLAM::DiscontinuousSegmentation &	segmentation () const
const std::vector< unsigned > &	chordIndexes () const
void	clear ()
void	closeLastSegment (CLAM::TData currentTime)
double	tunning () const
double	tunningStrength () const
std::pair< double, double >	instantTunning () const
double	energy () const
unsigned	firstCandidate () const
unsigned	secondCandidate () const
std::vector< double >	spectrum () const
Static Public Member Functions
static double	maximumFrequency (double sampleRate)

---

Detailed Description

Definition at line 52 of file ChordExtractor.hxx.

---

Member Typedef Documentation

typedef float* Simac::ChordExtractor::AudioFrame

Definition at line 73 of file ChordExtractor.hxx.

---

Constructor & Destructor Documentation

Simac::ChordExtractor::ChordExtractor	(	unsigned	sampleRate = 44100,
		double	minimumFrequency = 98,
		unsigned	binsPerOctave = 36
	)		[inline]

Definition at line 75 of file ChordExtractor.hxx.

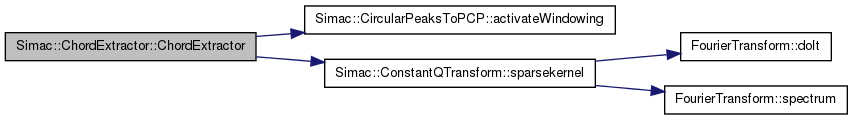

Here is the call graph for this function:

Simac::ChordExtractor::~ChordExtractor

(

)

[inline]

Definition at line 94 of file ChordExtractor.hxx.

Here is the call graph for this function:

---

Member Function Documentation

const std::vector<double>& Simac::ChordExtractor::chordCorrelation

(

)

const [inline]

Definition at line 195 of file ChordExtractor.hxx.

Here is the caller graph for this function:

const std::string Simac::ChordExtractor::chordEstimation

(

)

const [inline]

Definition at line 167 of file ChordExtractor.hxx.

const std::vector<unsigned>& Simac::ChordExtractor::chordIndexes

(

)

const [inline]

Definition at line 203 of file ChordExtractor.hxx.

Here is the caller graph for this function:

std::string Simac::ChordExtractor::chordRepresentation

(

unsigned

chordIndex

)

const [inline]

Definition at line 155 of file ChordExtractor.hxx.

const std::vector<double>& Simac::ChordExtractor::chromagram

(

)

const [inline]

Definition at line 183 of file ChordExtractor.hxx.

void Simac::ChordExtractor::clear

(

)

[inline]

Definition at line 207 of file ChordExtractor.hxx.

Here is the caller graph for this function:

void Simac::ChordExtractor::closeLastSegment

(

CLAM::TData

currentTime

)

[inline]

Definition at line 211 of file ChordExtractor.hxx.

void Simac::ChordExtractor::doIt	(	const AudioFrame &	input,
		CLAM::TData &	currentTime
	)		[inline]

Definition at line 111 of file ChordExtractor.hxx.

Here is the caller graph for this function:

void Simac::ChordExtractor::enablePeakWindowing

(

bool

peakWindowingEnabled = true

)

[inline]

Definition at line 104 of file ChordExtractor.hxx.

Here is the caller graph for this function:

void Simac::ChordExtractor::enableTunning

(

bool

tunningEnabled = true

)

[inline]

Definition at line 103 of file ChordExtractor.hxx.

Here is the caller graph for this function:

double Simac::ChordExtractor::energy

(

)

const [inline]

Definition at line 218 of file ChordExtractor.hxx.

void Simac::ChordExtractor::estimateChord

(

const ChordCorrelator::ChordCorrelation &

correlation

)

[inline]

Definition at line 132 of file ChordExtractor.hxx.

void Simac::ChordExtractor::filterInertia

(

double

inertia

)

[inline]

Definition at line 99 of file ChordExtractor.hxx.

Here is the caller graph for this function:

unsigned Simac::ChordExtractor::firstCandidate

(

)

const [inline]

Definition at line 219 of file ChordExtractor.hxx.

unsigned Simac::ChordExtractor::frameSize

(

)

const [inline]

Definition at line 109 of file ChordExtractor.hxx.

Here is the caller graph for this function:

unsigned Simac::ChordExtractor::hop

(

)

const [inline]

Definition at line 108 of file ChordExtractor.hxx.

Here is the caller graph for this function:

void Simac::ChordExtractor::hopRatio

(

double

hopRatio

)

[inline]

Definition at line 105 of file ChordExtractor.hxx.

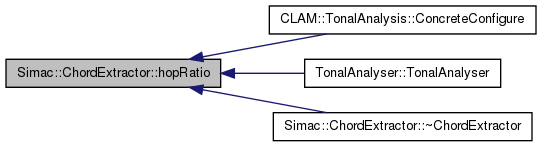

Here is the caller graph for this function:

std::pair<double,double> Simac::ChordExtractor::instantTunning

(

)

const [inline]

Definition at line 217 of file ChordExtractor.hxx.

Here is the caller graph for this function:

static double Simac::ChordExtractor::maximumFrequency

(

double

sampleRate

)

[inline, static]

Definition at line 72 of file ChordExtractor.hxx.

std::string Simac::ChordExtractor::mode

(

unsigned

chordIndex

)

const [inline]

Definition at line 163 of file ChordExtractor.hxx.

Here is the caller graph for this function:

const std::vector<double>& Simac::ChordExtractor::pcp

(

)

const [inline]

Definition at line 187 of file ChordExtractor.hxx.

Here is the caller graph for this function:

const std::vector<std::pair<double, double> >& Simac::ChordExtractor::peaks

(

)

const [inline]

Definition at line 191 of file ChordExtractor.hxx.

Here is the caller graph for this function:

std::string Simac::ChordExtractor::root

(

unsigned

chordIndex

)

const [inline]

Definition at line 159 of file ChordExtractor.hxx.

Here is the caller graph for this function:

unsigned Simac::ChordExtractor::secondCandidate

(

)

const [inline]

Definition at line 220 of file ChordExtractor.hxx.

const CLAM::DiscontinuousSegmentation& Simac::ChordExtractor::segmentation

(

)

const [inline]

Definition at line 199 of file ChordExtractor.hxx.

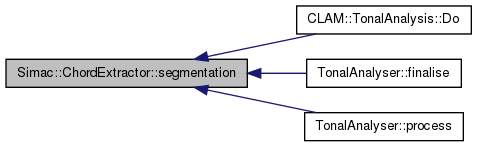

Here is the caller graph for this function:

void Simac::ChordExtractor::segmentationMethod

(

double

segmentationMethod

)

[inline]

Definition at line 106 of file ChordExtractor.hxx.

Here is the caller graph for this function:

std::vector<double> Simac::ChordExtractor::spectrum

(

)

const [inline]

Definition at line 221 of file ChordExtractor.hxx.

double Simac::ChordExtractor::tunning

(

)

const [inline]

Definition at line 215 of file ChordExtractor.hxx.

double Simac::ChordExtractor::tunningStrength

(

)

const [inline]

Definition at line 216 of file ChordExtractor.hxx.

---

The documentation for this class was generated from the following file:

• /home/maxime/Projets/Mixxx/1.10/mixxx/src/tonal/ChordExtractor.hxx
