#include <controlobject.h>

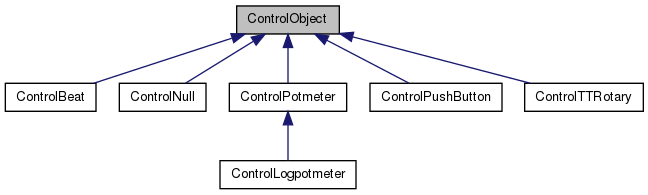

Inheritance diagram for ControlObject:

Collaboration diagram for ControlObject:

Public Slots
void	set (double dValue)
Signals
void	valueChanged (double)
void	valueChangedFromEngine (double)
Public Member Functions
	ControlObject ()
	ControlObject (ConfigKey key, bool bIgnoreNops=true)
virtual	~ControlObject ()
void	addProxy (ControlObjectThread *pControlObjectThread)
void	removeProxy (ControlObjectThread *pControlObjectThread)
bool	updateProxies (ControlObjectThread *pProxyNoUpdate=0)
ConfigKey	getKey ()
double	get ()
void	add (double dValue)
void	sub (double dValue)
void	queueFromThread (double dValue, ControlObjectThread *pControlObjectThread=0)
void	queueFromMidi (MidiCategory c, double v)
virtual double	getValueFromWidget (double dValue)
virtual double	getValueToWidget (double dValue)
virtual double	GetMidiValue ()
Static Public Member Functions
static bool	connectControls (ConfigKey src, ConfigKey dest)
static bool	disconnectControl (ConfigKey key)
static ControlObject *	getControl (ConfigKey key)
static void	getControls (QList< ControlObject * > *pControlsList)
static void	sync ()
Protected Member Functions
virtual void	setValueFromEngine (double dValue)
virtual void	setValueFromMidi (MidiCategory, double v)
virtual void	setValueFromThread (double dValue)
Protected Attributes
double	m_dValue
ConfigKey	m_Key

Detailed Description

ControlObjects is used as a way to share controller values between controllers, GUI and the sound engine. Whenever the value is changed by either a connected widget or a ControlEventMidi the emitValueChanged method is called which syncronizes the new value with the player thread using the semaphore protected queue.

The player thread has a corresponding ControlEngine object for each ControlObject. The ControlEngine object updates the ControlObject by queueing the values, and sending them as an event to the ControlObject.

Author:: Tue and Ken Haste Andersen

Definition at line 58 of file controlobject.h.

Constructor & Destructor Documentation

ControlObject::ControlObject ( )

Definition at line 35 of file controlobject.cpp.

ControlObject::ControlObject	(	ConfigKey	key,
		bool	bIgnoreNops = `true`
	)

Definition at line 40 of file controlobject.cpp.

ControlObject::~ControlObject ( ) [virtual]

Definition at line 49 of file controlobject.cpp.

Here is the call graph for this function:

Member Function Documentation

void ControlObject::add ( double dValue )

Add to value. Not thread safe.

Definition at line 244 of file controlobject.cpp.

Here is the call graph for this function:

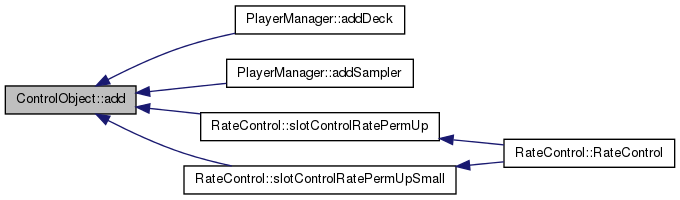

Here is the caller graph for this function:

void ControlObject::addProxy ( ControlObjectThread * pControlObjectThread )

Used to add a pointer to the corresponding ControlObjectThread of this ControlObject

Definition at line 126 of file controlobject.cpp.

Here is the caller graph for this function:

bool ControlObject::connectControls	(	ConfigKey	src,
		ConfigKey	dest
	)		`[static]`

Connect two control objects dest and src, so each time src is updated, so is dest.

Definition at line 96 of file controlobject.cpp.

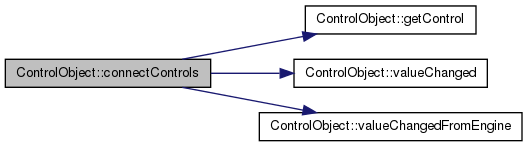

Here is the call graph for this function:

bool ControlObject::disconnectControl ( ConfigKey key ) [static]

Disonnect a control object.

Definition at line 112 of file controlobject.cpp.

Here is the call graph for this function:

double ControlObject::get ( ) [inline]

Return the value of the ControlObject

Definition at line 85 of file controlobject.h.

ControlObject * ControlObject::getControl ( ConfigKey key ) [static]

Returns a pointer to the ControlObject matching the given ConfigKey

Definition at line 168 of file controlobject.cpp.

void ControlObject::getControls ( QList< ControlObject * > * pControlsList ) [static]

Definition at line 159 of file controlobject.cpp.

Here is the caller graph for this function:

ConfigKey ControlObject::getKey ( ) [inline]

Return the key of the object

Definition at line 83 of file controlobject.h.

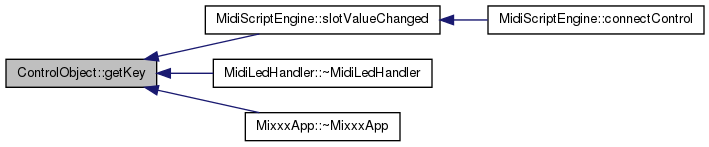

Here is the caller graph for this function:

double ControlObject::GetMidiValue ( ) [virtual]

get value (range 0..127)

Reimplemented in ControlLogpotmeter, and ControlPotmeter.

Definition at line 219 of file controlobject.cpp.

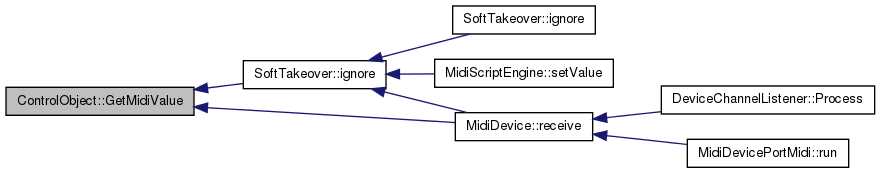

Here is the caller graph for this function:

double ControlObject::getValueFromWidget ( double dValue ) [virtual]

Return a ControlObject value, corresponding to the widget input value. Thread safe.

Reimplemented in ControlLogpotmeter, ControlPotmeter, and ControlTTRotary.

Definition at line 266 of file controlobject.cpp.

double ControlObject::getValueToWidget ( double dValue ) [virtual]

Return a widget value corresponding to the ControlObject input value. Thread safe.

Reimplemented in ControlLogpotmeter, ControlPotmeter, and ControlTTRotary.

Definition at line 271 of file controlobject.cpp.

Here is the caller graph for this function:

void ControlObject::queueFromMidi	(	MidiCategory	c,
		double	v
	)

Queue a control change from MIDI. Thread safe. Blocking.

Definition at line 195 of file controlobject.cpp.

Here is the caller graph for this function:

void ControlObject::queueFromThread	(	double	dValue,
		ControlObjectThread *	pControlObjectThread = `0`
	)

Queue a control change from a widget. Thread safe. Blocking.

Definition at line 183 of file controlobject.cpp.

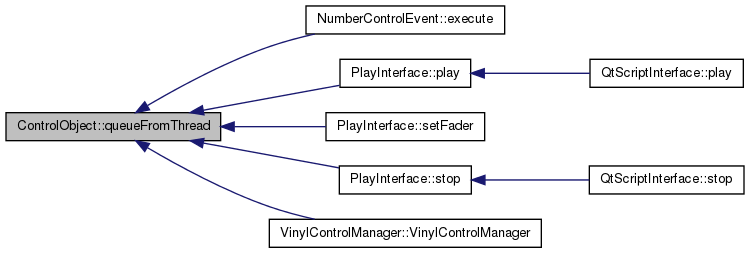

Here is the caller graph for this function:

void ControlObject::removeProxy ( ControlObjectThread * pControlObjectThread )

Definition at line 133 of file controlobject.cpp.

Here is the caller graph for this function:

void ControlObject::set ( double dValue ) [slot]

Sets the value of the object and updates associated proxy objects. Not thread safe.

Definition at line 233 of file controlobject.cpp.

Here is the call graph for this function:

void ControlObject::setValueFromEngine ( double dValue ) [protected, virtual]

Sets the value of the object. Not thread safe.

Reimplemented in ControlPotmeter.

Definition at line 207 of file controlobject.cpp.

Here is the call graph for this function:

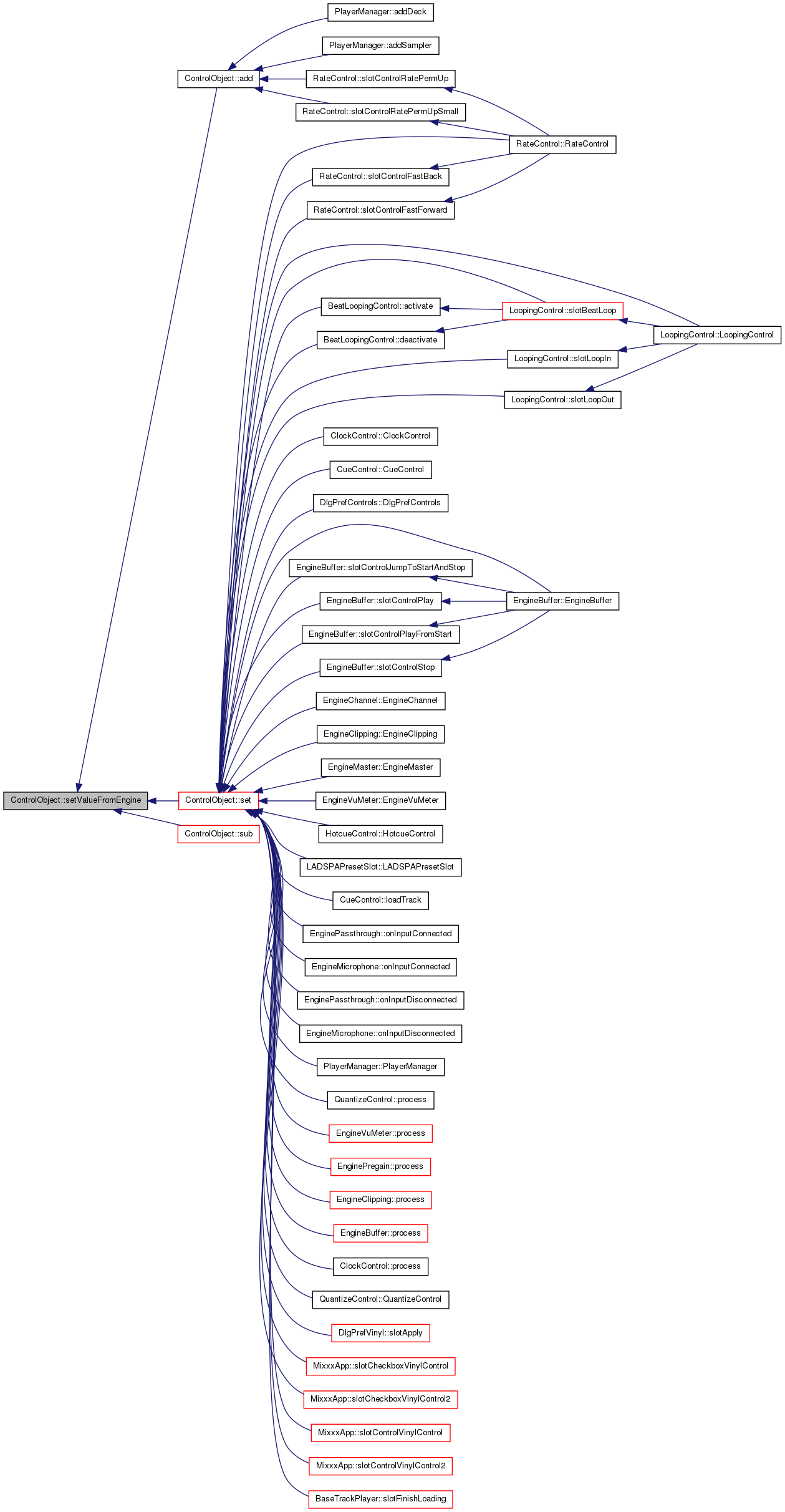

Here is the caller graph for this function:

void ControlObject::setValueFromMidi	(	MidiCategory	,
		double	v
	)		`[protected, virtual]`

Called when a widget has changed value. Not thread safe.

Reimplemented in ControlBeat, ControlLogpotmeter, ControlPotmeter, ControlPushButton, and ControlTTRotary.

Definition at line 213 of file controlobject.cpp.

Here is the call graph for this function:

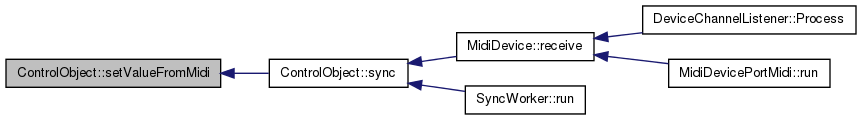

Here is the caller graph for this function:

void ControlObject::setValueFromThread ( double dValue ) [protected, virtual]

Called when another thread has changed value. Not thread safe.

Reimplemented in ControlBeat, and ControlPotmeter.

Definition at line 224 of file controlobject.cpp.

Here is the call graph for this function:

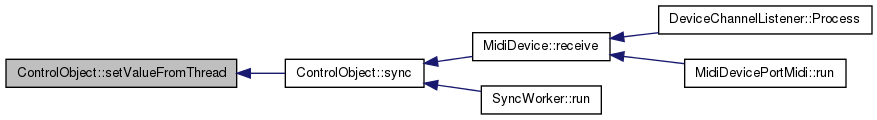

Here is the caller graph for this function:

void ControlObject::sub ( double dValue )

Subtract from value. Not thread safe.

Definition at line 255 of file controlobject.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ControlObject::sync ( ) [static]

Syncronizes all ControlObjects with their corresponding proxies.

Definition at line 276 of file controlobject.cpp.

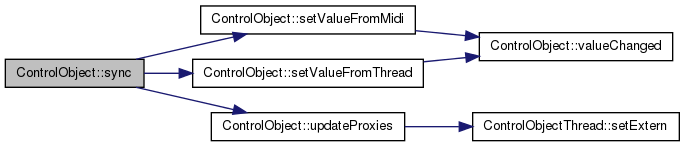

Here is the call graph for this function:

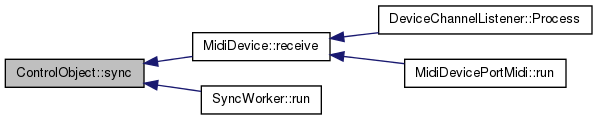

Here is the caller graph for this function:

bool ControlObject::updateProxies ( ControlObjectThread * pProxyNoUpdate = 0 )

Update proxies, execep the one given a pointer to. Returns true if all updates happend, otherwise false.

Definition at line 139 of file controlobject.cpp.

Here is the call graph for this function:

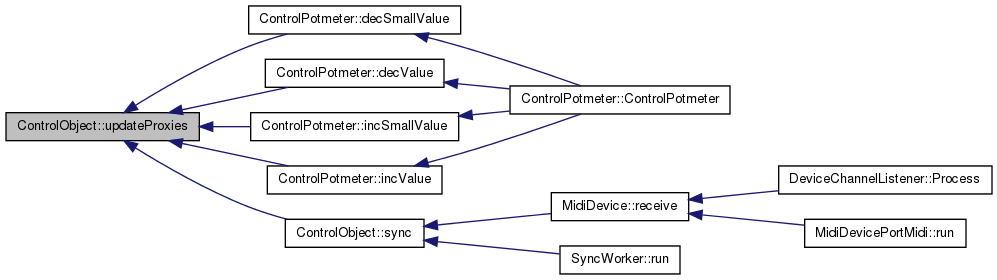

Here is the caller graph for this function:

void ControlObject::valueChanged ( double ) [signal]

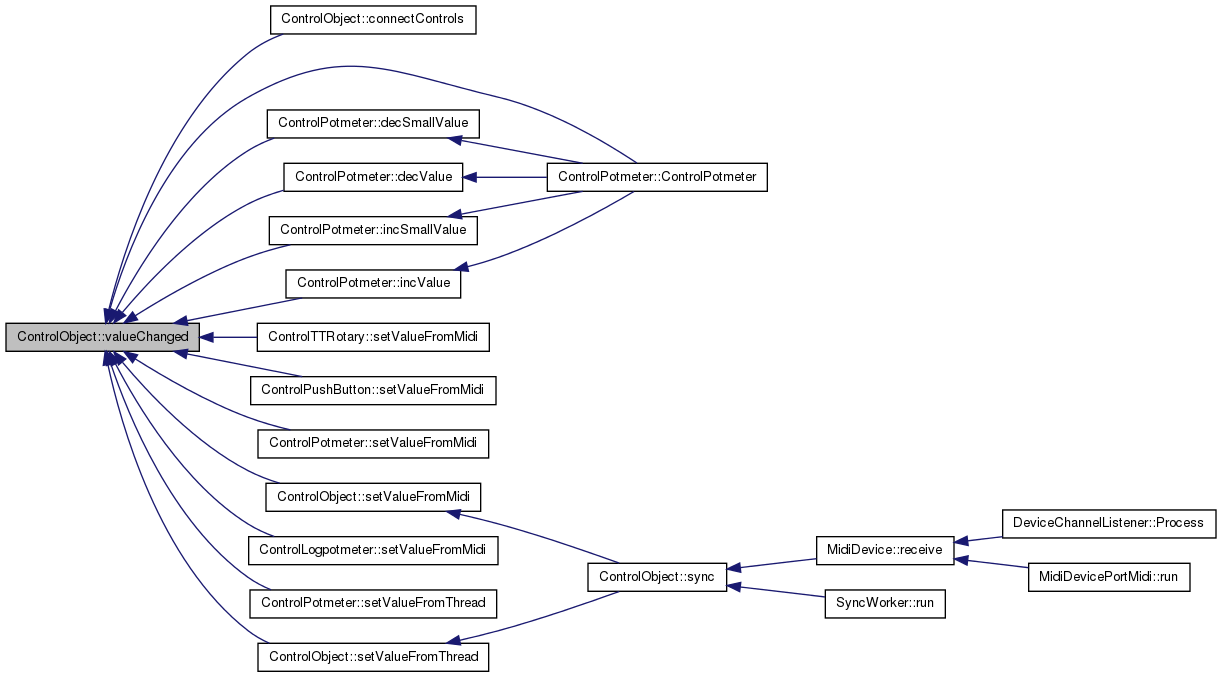

Here is the caller graph for this function:

void ControlObject::valueChangedFromEngine ( double ) [signal]

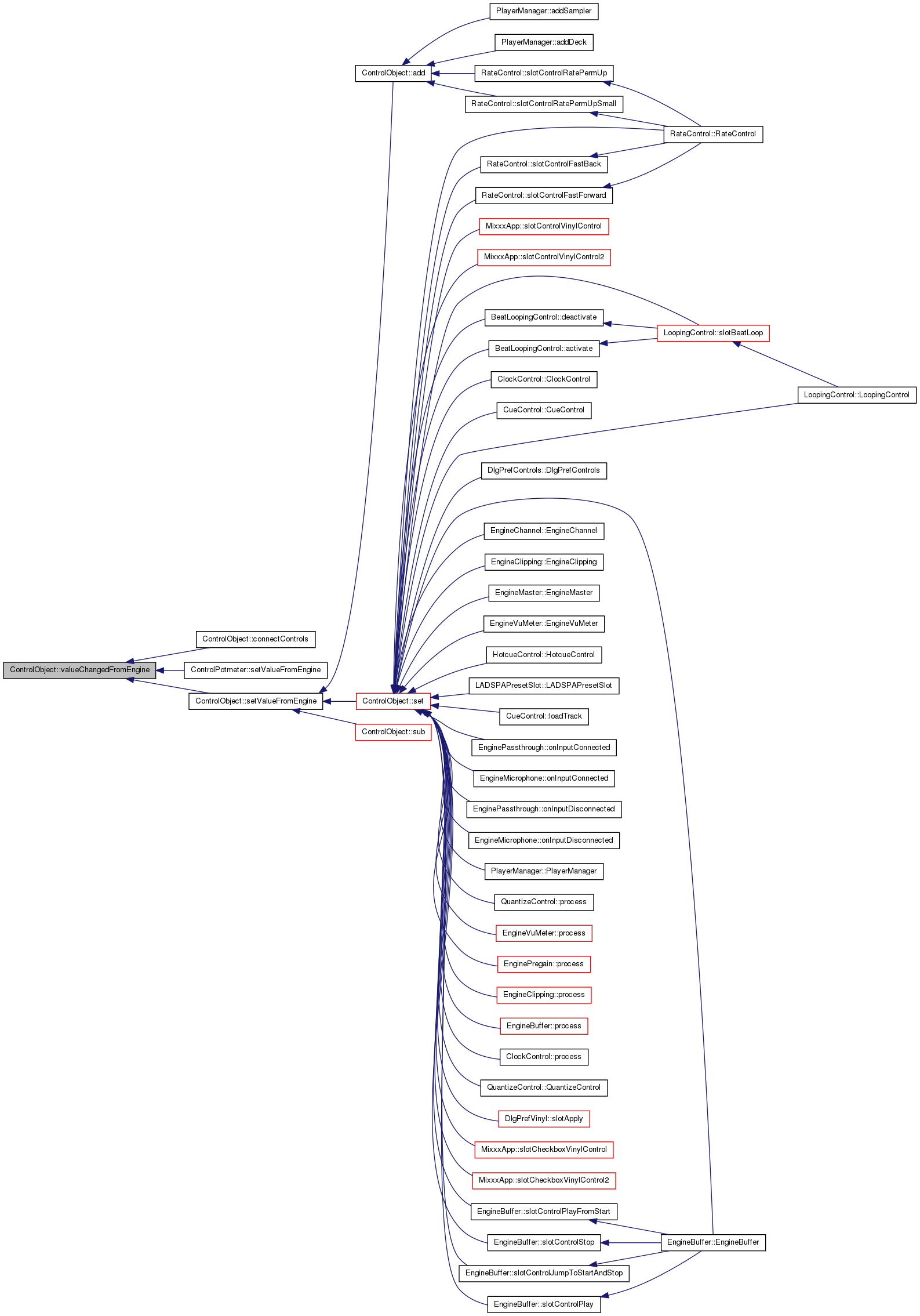

Here is the caller graph for this function:

Member Data Documentation

double ControlObject::m_dValue [protected]

The actual value of the controller

Definition at line 121 of file controlobject.h.

ConfigKey ControlObject::m_Key [protected]

Key of the object

Definition at line 123 of file controlobject.h.

The documentation for this class was generated from the following files:

/home/maxime/Projets/Mixxx/1.10/mixxx/src/controlobject.h
/home/maxime/Projets/Mixxx/1.10/mixxx/src/controlobject.cpp
